Profender 50mm Gas Lift Kit to suit Isuzu D-Max 2020-Onwards

DETAILS

Profender 50mm Gas Lift Kit to suit Isuzu D-Max 2020-Onwards

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: D-Max
Model: TFS40
Year: Mid 2020 -
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 40mm - 50mm Lift
Rear Lift: 40mm - 50mm Lift
Detail:
- Twin Tube Nitrogen Gas Charged Shock Absorbers
- Front shocks come pre-assembled for ease of installation.

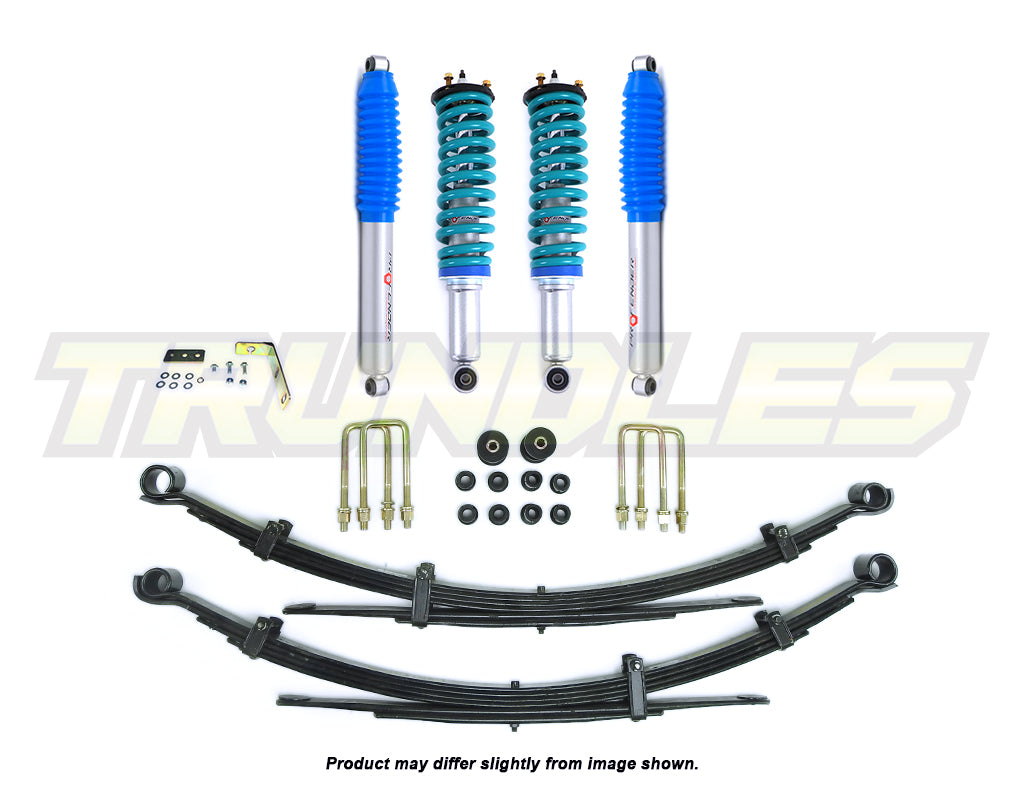

COMPONENTS

Front:
2x Profender Heavy Duty Front Shocks - PF-9610A50
1x Pair Dobinsons Front Springs
4x Spring Seat Spacers - see below "Included Spring Seat Spacers" section for more details
2x Removable Spring Seats
2x Trundles Strut Top Mounts - TOP10

Rear:
2x Profender Heavy Duty Rear Shocks - PF-9010P
2x Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB21-1111K
2x Dobinsons U-Bolt Kits
1x Dobinsons Brakeline Extension - WA21-584K

EXTRAS

Dobinsons Rear Greasable Shackles - SK21-065
Dobinsons Rear Greasable Pins - SP59-060
Trundles Bolt In Diff Drop - DDDMAX20

Included Spring Seat Spacers

Profender front shocks for IFS vehicles are supplied with spring seat spacers (collars). These collars fit beneath the spring seat and can be used to increase spring preload and vehicle ride height if additional lift is required in the future.

When you order a pre-assembled strut from us, you do not need to install these collars before fitting the strut. Your struts are assembled to your requested ride height and load rating using a correctly specified coil spring.

If you are ordering shocks only to use with an existing lifted coil spring, you also do not need to install the collars, provided your current springs are correctly specified.

Installing these collars will increase the ride height of your supplied strut. As a guide, the 10 mm collar will typically provide approximately 15 mm of additional vehicle lift, although actual lift will vary depending on vehicle weight, accessories, and spring rate.

The collars are supplied separately and are not required for standard installation.

New Zealand Compliance Notice: If these collars are fitted to alter the spring seat height and increase ride height, LVV certification will be required before the vehicle can be legally used on the road. Customers should consult an LVV certifier before installation.

Shocks installed without the spring seat spacers are generally treated as direct replacement suspension components and typically do not require LVV certification.
