Profender 75mm Gas Lift Kit to suit Ford Ranger PX3 2018-2022

DETAILS

Profender 75mm Gas Lift Kit to suit Ford Ranger PX3 2018-2022

We strongly recommend you run an adjustable coil over when opting for a 75mm front lift. This allows you to dial in the ride height while also accommodating varying loads (future proofs your lift if you want to add a bullbar and/or winch in future), and gives you the ability to make any adjustments as necessary come certification time.

If you are chasing a level look, we recommend 40mm rear springs.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: Ranger
Model: PX3
Year: Mid 06/2018 - 06/2022
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 75mm Lift
Rear Lift: 35mm-75mm Lift
Detail:
- 4x4 Strut Mounted Front Bump Stop Models Only
- Push Button Start Models Only
- Also Suits 4x2 High-Rider
- Twin Tube Nitrogen Gas Charged Shock Absorbers
- Front struts come pre-assembled for ease of installation.

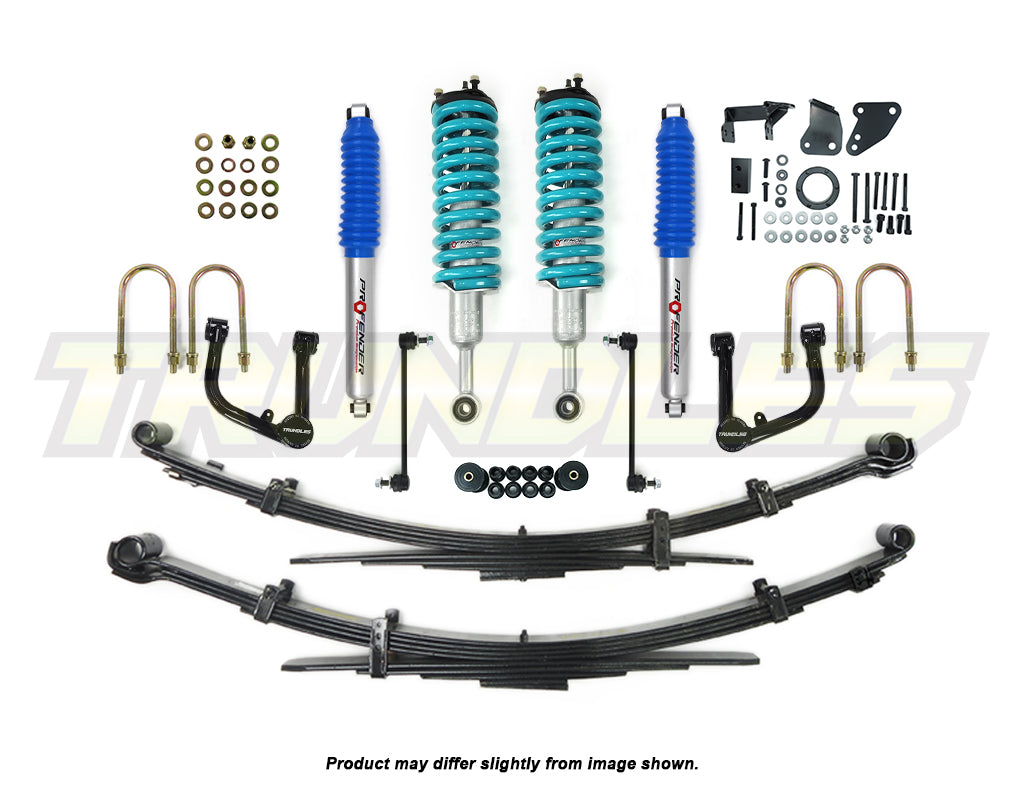

COMPONENTS

Front
2x Profender Heavy Duty Front Shocks - PF-1611A50
1x Pair Dobinsons Front Springs
2x Trundles Strut Top Mounts - TOP8
2x Dobinsons Sway Bar Links - SE19-570
1x Pair Trundles Upper Control Arms - UCA3957R
1x Trundles Bolt In Diff Drop - MAZ-007

Rear
2x Profender Heavy Duty Rear Shocks - PF-4045P
2x Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB19-1104K
2x Dobinsons U-Bolt Kits - UB21-466K
1x Tail Shaft Spacer Kit - TSS001

Included Spring Seat Spacers

Profender front shocks for IFS vehicles are supplied with spring seat spacers (collars). These collars fit beneath the spring seat and can be used to increase spring preload and vehicle ride height if additional lift is required in the future.

When you order a pre-assembled strut from us, you do not need to install these collars before fitting the strut. Your struts are assembled to your requested ride height and load rating using a correctly specified coil spring.

If you are ordering shocks only to use with an existing lifted coil spring, you also do not need to install the collars, provided your current springs are correctly specified.

Installing these collars will increase the ride height of your supplied strut. As a guide, the 10 mm collar will typically provide approximately 15 mm of additional vehicle lift, although actual lift will vary depending on vehicle weight, accessories, and spring rate.

The collars are supplied separately and are not required for standard installation.

New Zealand Compliance Notice: If these collars are fitted to alter the spring seat height and increase ride height, LVV certification will be required before the vehicle can be legally used on the road. Customers should consult an LVV certifier before installation.

Shocks installed without the spring seat spacers are generally treated as direct replacement suspension components and typically do not require LVV certification.
